Self-supporting optical cable FinMark UTxxx-SM-48

Self-supporting optical cable FinMark UTxxx-SM-48

Fiber Count of an Optical Cable
  • FinMark UT004-SM-48
  • FinMark UT008-SM-48
  • FinMark UT016-SM-48
  • FinMark UT024-SM-48
  • FinMark UT012-SM-48

Choose the options that you are interested in.

    Help required?

    Leave us a note and we will contact you as soon as possible!

    Description

    Use:
    For hanging on supports of communication lines and electrical power supply lines, urban electric transport lines, between houses and other objects.

    Design:

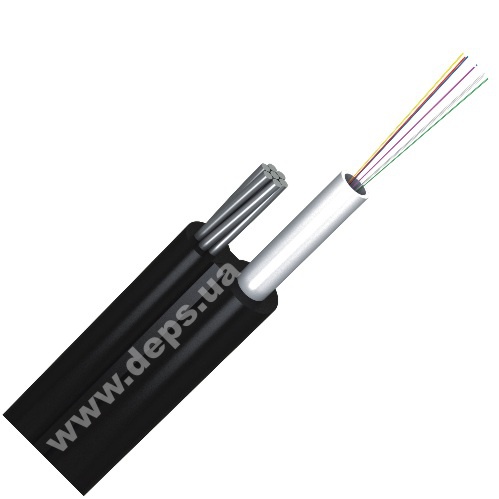

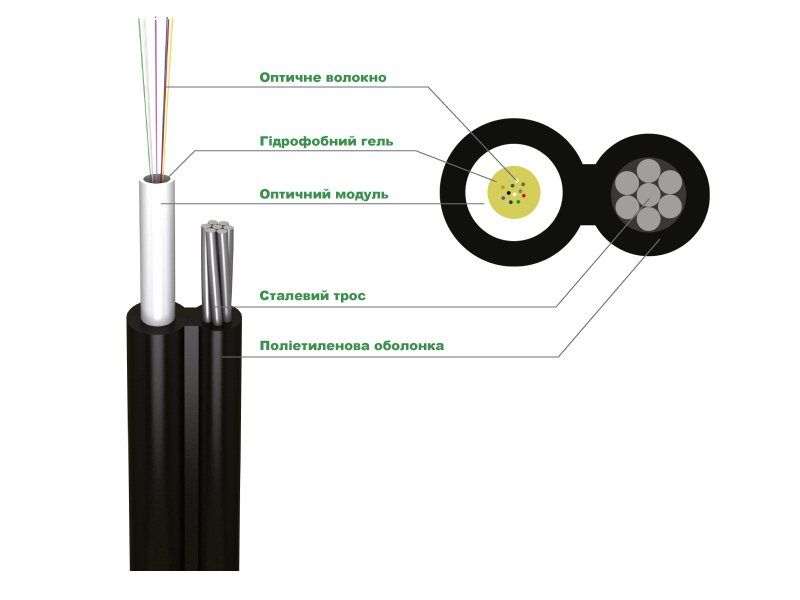

    Cable of «8» type with one optical module, which can contain up to 24 optical fibers. Represents simplified version of a design UТxxx-SM-08 without steel goffer armour. External coating is made from UV-stabilized polyethylene of high density. Carrying strength element is made from zinc-coated twisted wire rope, with a thickness of 3.0 or 3.6 mm, which provides cable high resistance to loads for large hanging lengths.

    Specifications:

    Amount of fibers, pcs.

    2 – 12

    14 – 24

    Diameter of optical module, mm

    3.0

    3.6

    Diameter of steel carrying wire(twisted from braiding), mm

    3.0 (7 х 1.0mm) or 3.6 (7 х 1.2mm)

    Outer coating thickness, mm *

    1.5

    Width × heigth of cable, mm *

    6.0 × 12.9

    6.6 × 13.5

    Cable mass (for a wire rope 3.6mm), kg/km  **

      94(118)

      100(122)

    Min. bending radius, constant/dynamic

    10 / 20 cable diameters

    Max. tensile force (for a wire rope 3.6mm), N

    4000 (6000)

    Max. compressive load (short-term/long-term), N/100mm

    1000 / 300

    Max. hanging length (sag 1-2% / 2-3%), m

    110 / 140 (130 / 160)

    Allowable temperatures

    operation

    -40°C – +60°C

    storage

    -50°C – +70°C

    install.

    -20°C – +50°C

    (*) – allowable deviation +/- 0.2 mm
    (**) – averaged
    (***) – maximum hanging length is indicated, calculated for temperate climate.

    An optical fiber Fujikura FutureGuide is placed in the cable – LWP (complies with ITU-T G.652.D) its specifications you can find here. On a client’s demand cable can be manufactured with fibers by ITU-T G.655

    Description of colour marking of optical fibers you can find here

    Symbolic notation of FinMark optical cables you can find here
