    Description

    Application

    FinMark LDF-1/2-50 coaxial cable with a wave impedance of 50 Ohm is intended for use in antenna-feeder paths of radio communication devices in GSM, DCS, CDMA, 3G WCDMA, MPT, TETRA, WiFi, WiMAX networks. Small diameter and sufficient level of flexibility allow the cable to be used for direct connection to the antenna using an RF connector.

    The large-diameter central conductor made of copper-clad aluminum and a high-quality dielectric made of foamed polyethylene provide good transmission parameters at high frequencies (up to 3 GHz) throughout the entire service life of the cable.

    The outer conductor in the form of a corrugated copper tube and the outer sheath made of high-density polyethylene guarantee flexibility and mechanical strength when operating in a wide temperature range

    Design

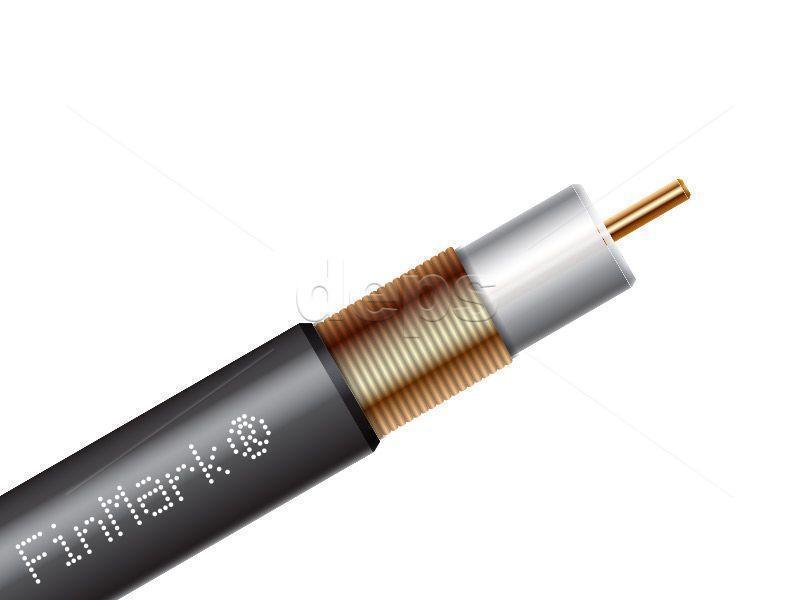

    The central conductor is aluminum, copper-clad. The dielectric is physically foamed polyethylene. The screen is in the form of a solid copper corrugated tube. The outer shell is polyethylene, black.

    Cable designation type LDF-1/2-50
    Among the offers from various manufacturers, it is quite common to find markings of coaxial cables with the size 1/2″ (LDF-1/2-50, LСF-1/2-50, LCF 12-50″, LDF4 50A, HPL50-1/2, HFC-1/2″ and others).

    Similar markings are used for feeder coaxial cables with a wave impedance of 50 Ohm and inner/outer conductor dimensions of 4.8/13.8 mm, intended for connecting an antenna to receiving and transmitting equipment.

    If you need a coaxial cable type 1/2″ or you are looking for a replacement for an old cable, we recommend that you pay attention to the modern FinMark LDF-1/2-50 model.

    If you are unable to find a cable with the required parameters yourself, ask a question via the form on the website or contact your DEPS manager – we will try to find the best option in the shortest possible time.

    Packaging

    For ease of transportation, storage and installation, the FinMark LDF-1/2-50 cable is supplied in 500 m coils.
