Description

Purpose:

Distribution cable “last mile”, for use in FTTH networks. Designed for laying inside buildings, in risers, attics, basements, pipelines, in boxes and on skirting boards, in offices and apartments. Easily attached to any flat surfaces, simple and convenient during installation.

Fully dielectric design allows the cable to be used in conditions of electromagnetic influence, does not require grounding of power elements.

Cables with reduced losses on bends “Flex” can be laid inside apartment buildings or offices in conditions of limited space. On skirting boards, through doorways, at sharp turns of the route, when installing cables using brackets.

Design:

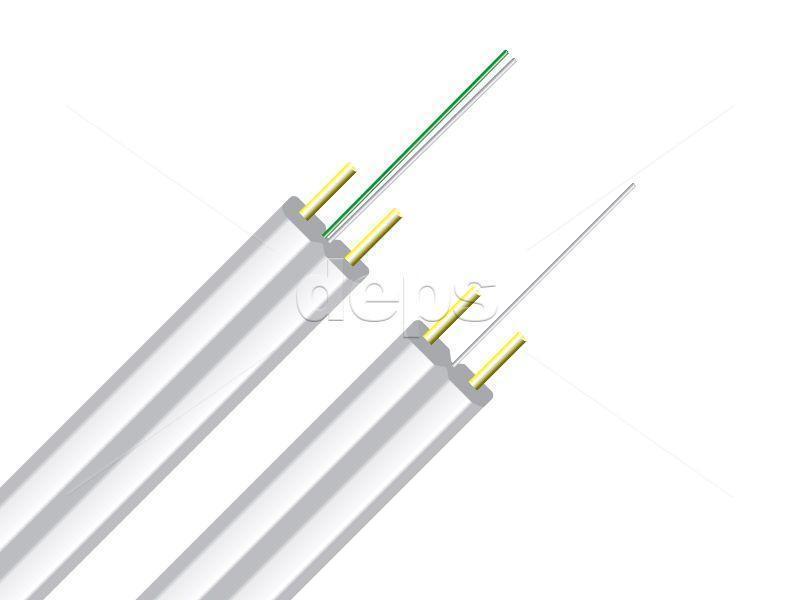

The cable contains one fiber that complies with the ITU-T Recommendation G.657.A1 (single-mode fiber with reduced losses on bends). The minimum bending radius of such a cable is much smaller than the usual one – up to 20 … 30 mm.

The outer sheath is made of non-flammable, halogen-free low-smoke material LSZH (Low Smoke Zero Halogen), white.

The white color of the sheath will look aesthetically pleasing when using the cable indoors. Resistance to longitudinal tension of the cable is provided by two strength elements made of fiberglass rods (FRP).
