FinMark LTxxx-SM-ADSS-2kN optical cable
FinMark LTxxx-SM-ADSS-2kN optical cable
- Cable type ADSS, LT
- Design dielectric, self-supporting
- Application On supports LP, Suspension
Fiber Count of an Optical Cable
Choose the options that you are interested in.
Help required?
Leave us a note and we will contact you as soon as possible!
Description
Use:
ADSS (All Dielectric Self-supporting) – optic cable is designed for hanging on poles of communication lines, of municipal electric, between buildings and other objects. All-dielectric cable construction allows its hanging on poles of electric contact networks and on power lines with up to 12 kV.

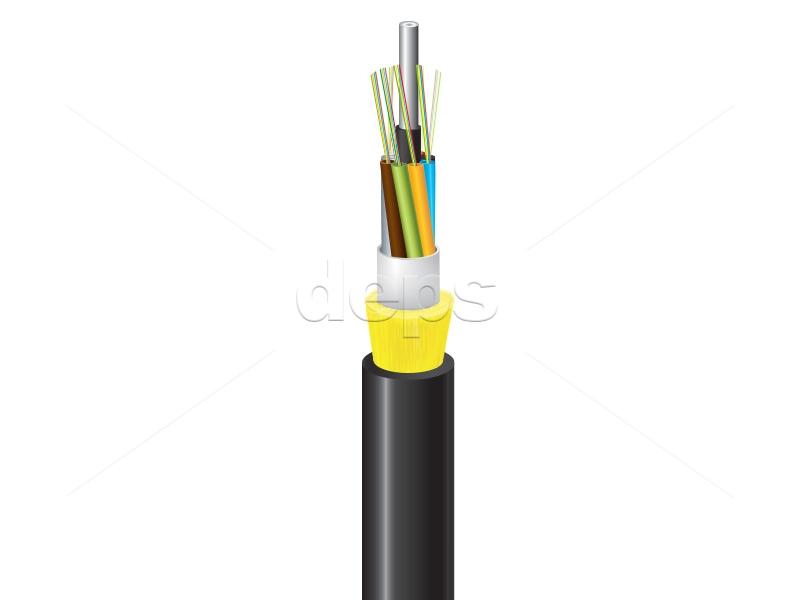

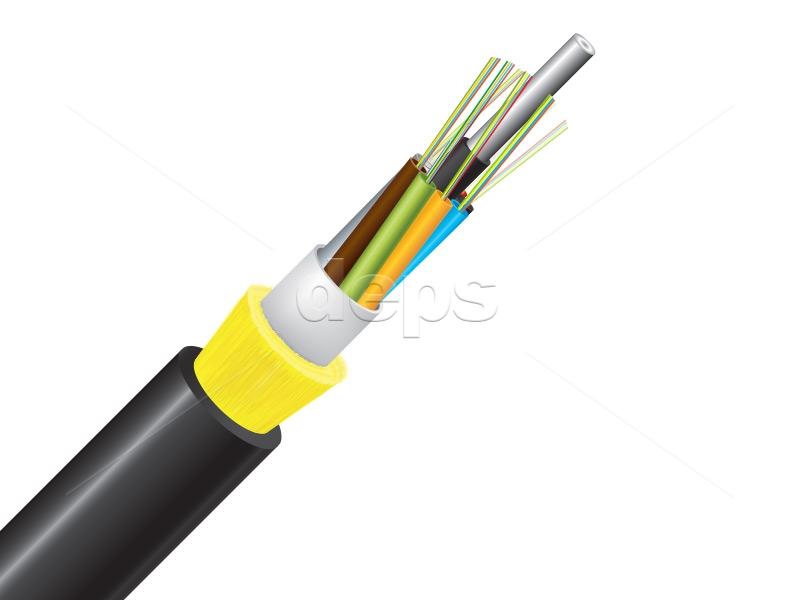

Cable design:

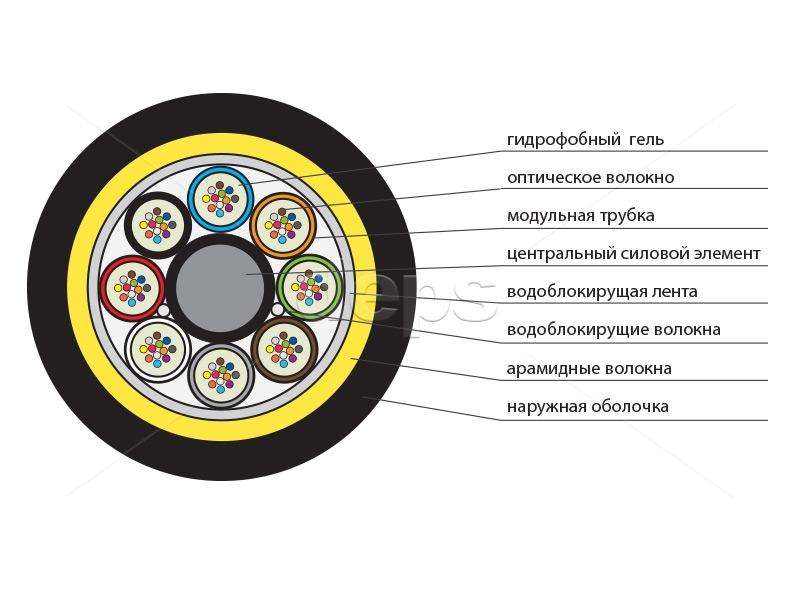

Dielectric self-supporting optical cablewith severalmoduleslocatedaround a centraldielectricstrength element which maycontain of up to72optical fibers. The space between modules is filled by hydrophobic gel. In Cables with small amount of optic fibers instead of missing modules applied so-called “filling” modules. Optic cable is gaining self-supportingproperties by using in it so called kevlar(aramid) fibers. The outersheath is madeof a UV–stabilized high density polyethylene.
You can choose type of fiber optic that can be used in optical cable (Fujikura FutureGuide – LWP “ITU-T G652.D” or “ITU-T G.655)
| Fibers number, pcs. | 24 – 36 | 48 – 72 | |
| Outer sheath thickness, mm * | 1.5 | 1.8 | |
| Width x Height, mm * | 9.9 | 11.7 | |
| Cable weight, kg/km * | 71 | 100 | |
| Minimum bend radius, constant / dynamic | 15 / 20 times of cable diameter | ||
| Maximum load in tension, N | 2000 | ||
| Maximum compressive load, N/100 mm | 1000 | ||
| Maximum hanging length (sagging 1-2% / 2-3%), m | 120/100 | ||
| Temperature range for | working | -40 – +60 °C | |
| storage | -50 – +70 °C | ||
| installation | -20 – +50 °C | ||
(*) – tolerance of +/- 0.2 мм (**) – averaged
