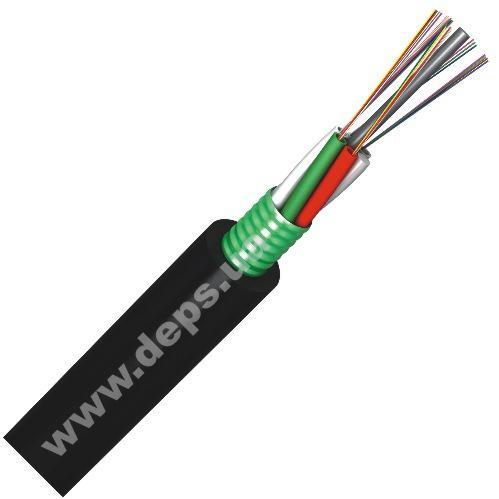

FinMark LTxxx-SM-05 optical cable
FinMark LTxxx-SM-05 optical cable
- Cable type LT
- Design Armored
- Application Soil, in cable-conduit lines, tunnel, entering into the building
Fiber Count of an Optical Cable
Choose the options that you are interested in.
Help required?
Leave us a note and we will contact you as soon as possible!
Description
Application:
Cable is used for installation in cable ducts and pipelines, bridges and overpasses, tunnels, in sewers for input into building, including the areas infected by rodents, and light soils (without frost deformations), as well as along the outer walls of buildings.
Design:

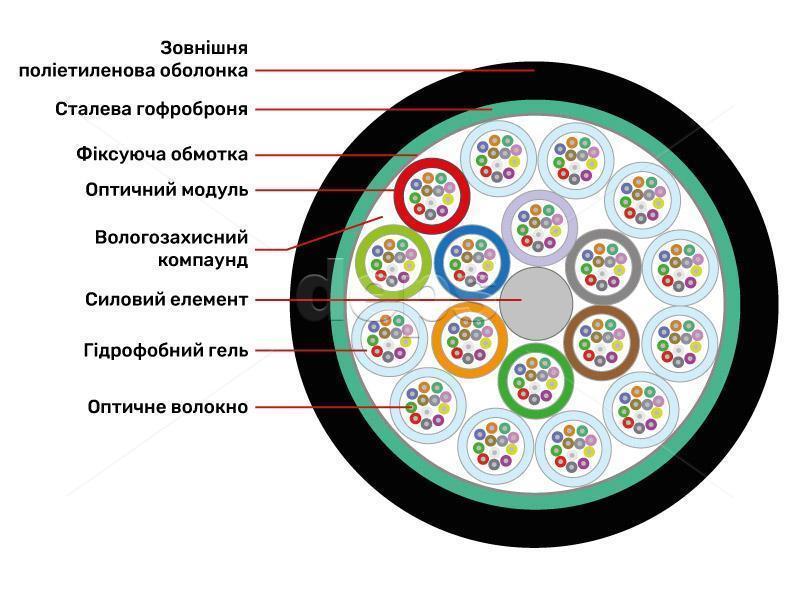

Cable has 5 — 8 optical modules (and up to 96 optical fibers), wound around a central strength member. Optical cable FinMark LTxxx-SM-05 is a lightweight design modification of LTxxx-SM-04 cable, enabling to lay up to 96 fibers in the cable with outer diameter 12 mm.

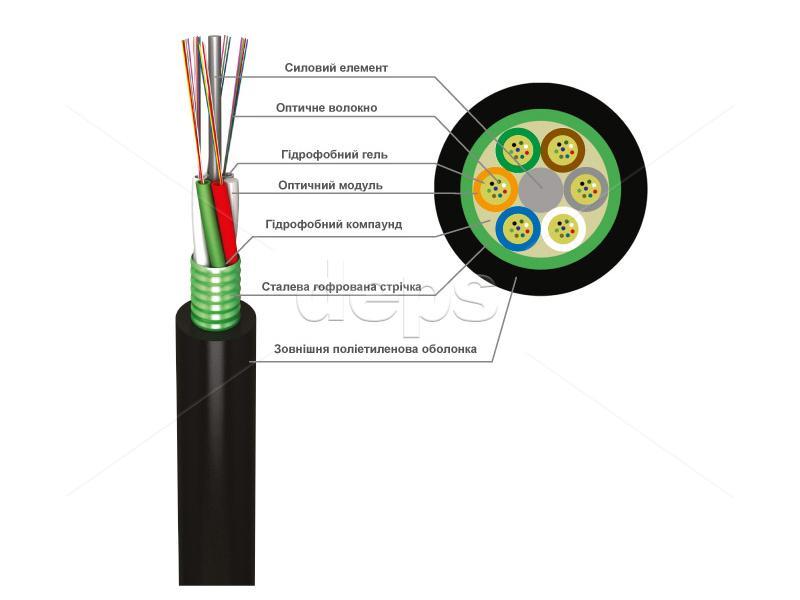

Inside the modules there is hydrophobic gel. In a cable with a small number of fibers, instead of the missing optical modules are used so-called «Filling» modules. The space between modules is filled with water-blocking compound. Over the cable core the armor of corrugated steel tape is superimposed. In addition to the mechanical protection it works as a hydro barrier preventing moisture diffusion through the polymer shell to the optical fiber. The outer sheath is made of a UV-stabilized high density polyethylene.
Upon request, the cable can be manufactured with the fibers in compliance with ITU-T G.655.
| Amount of fibers, pcs | 12-36 | 38-48 | 50-72 | 77-96 | |
| Total amount of optical and filling modules, pcs | 6 | 5 | 6 | 8 | |
| Maximum amount of fibers in module, pcs | 6 | 12 | 12 | 12 | |
| Outer sheath thickness, mm * | 1.6 | 1.6 | 1.6 | 1.6 | |
| Cable diameter * | 9.4 | 10 | 10.6 | 12.0 | |
| Cable weight, kg/km** | 105 | 112 | 136 | 165 | |
| Min. bending radius, const/dyn | 15 / 20 диаметров кабеля | ||||
| Max. tensile force (short-term/long-term), N | 1500/500 | ||||
| Max compressive load, (short-term/long-term), N/100mm | 1500/500 | ||||
| Allowable temperature, °C | operating | -40 — +60 | |||
| storage | -40 — +60 | ||||
| installation. | -15 — +60 | ||||
(*) — allowable deviation +/- 0.2 mm
(**) – average
